Wireshark Packet Capture

Capturing Packets with Wireshark

8/25/20233 min read

I will be following the guided project from coursera: Wireshark for Beginners: Capture Packets by
Goal: Capture ethernet traffic and detect certain IP addressses

  • Scenario - Working with a company that want to detect TCP/IP traffic on their server — specifically web traffic

  • Set up and demonstarte Wireshark packet capture capibilties


Task 1: Adding a user a sudogroup to add packet capture capabilities

→ Key takeways: Should not run with sudo user for security reasons, SUDO is a superuser/Amdin. type of account

Task 2: Start a packet capture and save it to a file

  1. Will be selecting em5 -- as that is for ethernet traffic

  1. Clicking the Sharkfin logo - we can see traffic from the ethernet port

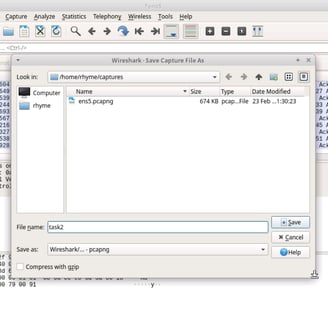

  1. Save the packet capture in a file, Captures can only be saved when the capture is stopped.

Task 3: Use a display filter to detect HTTPS packets

  1. We are trying to capture packets regarding the duckduckgo site. I reran wireshark and entered the url again.

  1. I can see the Client hello of 52.149.240.39

  • Entering this IP address in your browser will pull up Duckduckgo.com -- Shows that we are correctly capturing network packets

  • We see port 443: which is https traffic

  • We see that ACK -- acknowdlegemnet in the TCP handshake

  • We can see the packet lenght

Task 4: Visit a webpage and detect it's IP address using a display filter

  1. I am now capturing network traffic for: google.com

    -> Here we can see multiple client hellos, this is because google uses mulitple IP addresses

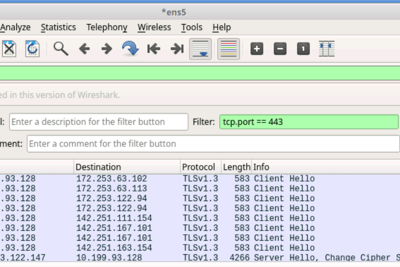

  • We can also do this by using the filter, which will capture the first part of the TCP handshake: tls.handshake.type == 1

  • We can also use : ip.addr == ... to drill down into specific ip addresses (This is useful if a specific website/IP is causing issues) can use this to investigate further

ip.src == 142.251.111.154 -- When the src is communiting with our computer
ip.dst == 142.251.111.154 -- When we are sending data to this detination

Task 5: Locate all HTTPS packets from a capture not containing a certain IP address

  1. I captured data from Duckduckgo and Google and saved it to a file

  1. Use tls.handshake.type == 1 to look for Client hellos

  • The destination 172.253.122.104 is google.com

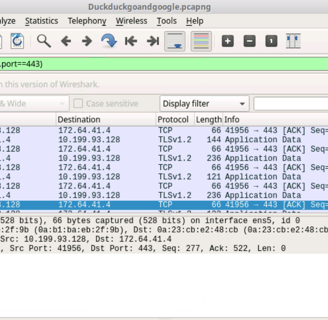

  1. Use !ipaddr==172.253.122.104 and (tcp port==443)

  • This will not pick up traffic from google.com but continue to pick all other https traffic as i specified tcp port 443, can add in port 80 for HTTP traffic as well
